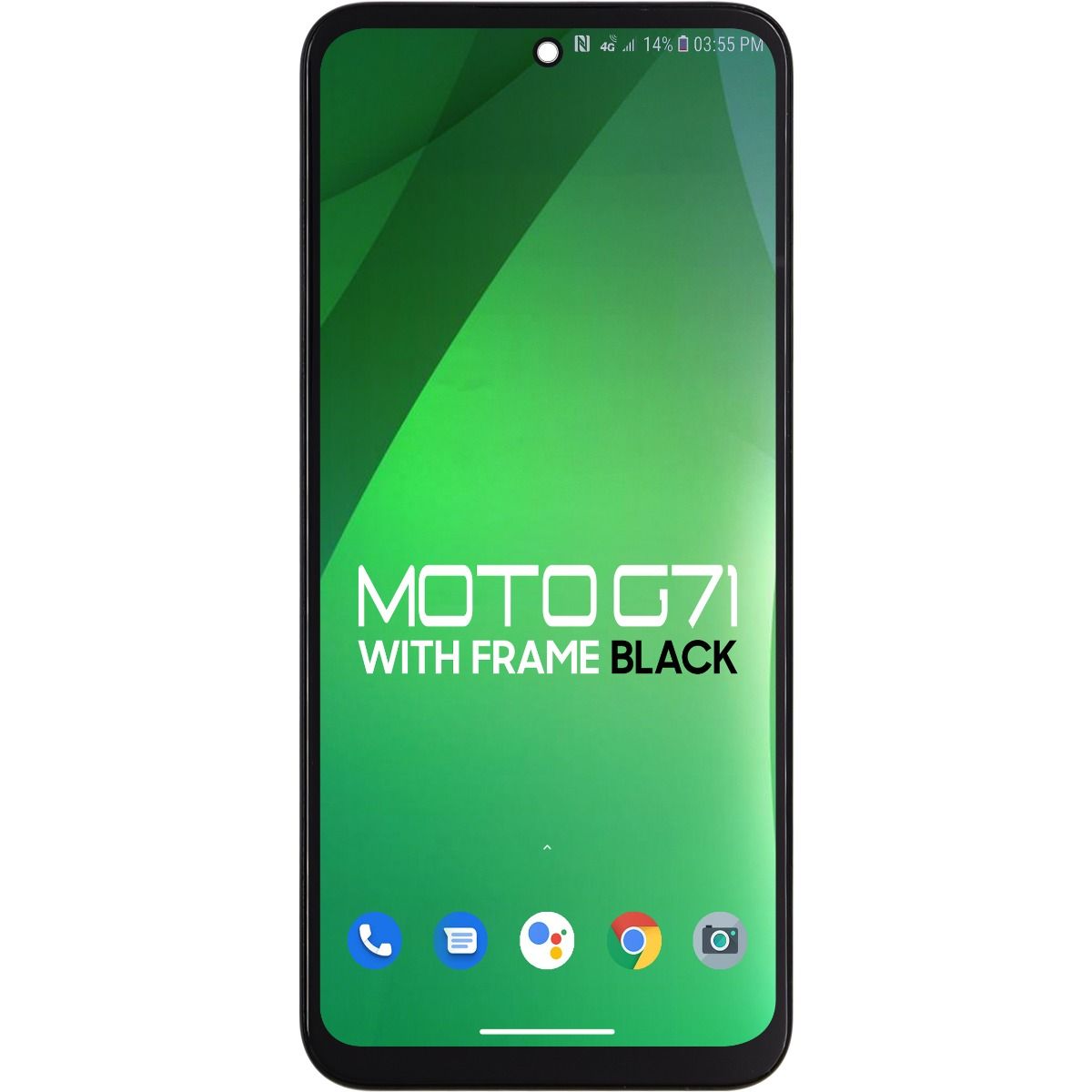

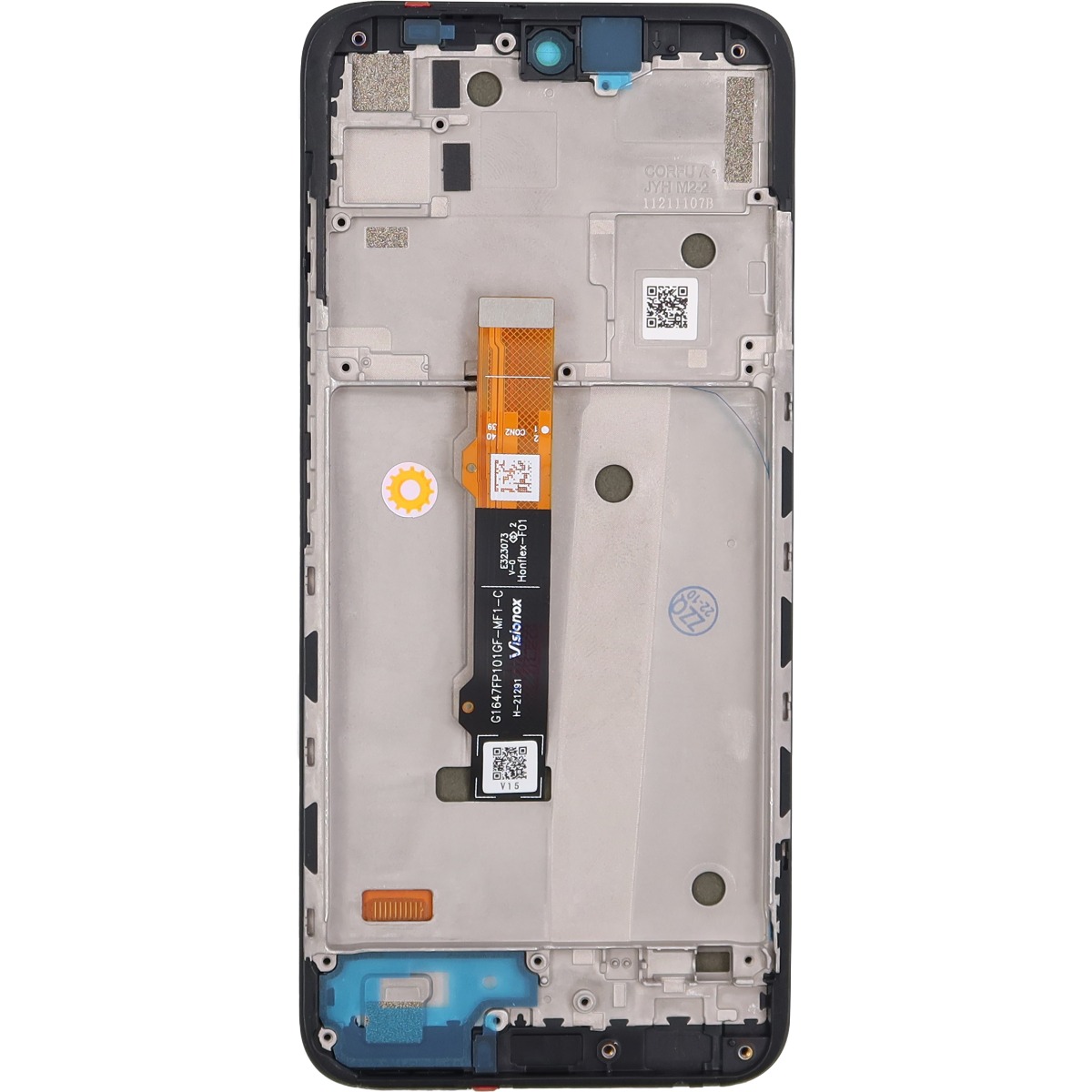

Motorola G71 5G XT2169-01 LCD With Touch + Frame Black Best Quality
$30.00
Available In stock
Installation Steps
Installation Steps:
Power off your Motorola device before beginning.
Use the Suction Cup tool and a Phillips screwdriver to lift the screen safely.
Place the suction cup near the home button and gently pull to create a small gap between the screen and the chassis.
Use a Phillips screwdriver to remove any screws securing the display assembly to the frame, if applicable.
Be cautious not to apply too much force to avoid damaging the screen further.
Insert a guitar pick to open the screen assembly.
Slide a guitar pick into the gap created by the suction cup.
Slowly glide the pick along the edge to release the adhesive securing the screen.
Disconnect the battery connector first to prevent electrical issues.
Locate the battery connector, typically beneath a metal plate.
Use a Phillips screwdriver to remove the screws securing the plate.
Gently lift the connector using a plastic spudger or tweezers to avoid damaging it.
Disconnect the screen connectors to take out the damaged screen.
Identify and disconnect the connectors attaching the screen assembly to the phone's logic board.
These connectors are usually located near the top edge of the phone.
Test the new screen before installation.
Carefully attach the connectors of the new screen to the logic board.
Power on the Motorola device to ensure the new screen functions properly before proceeding.
Align and connect the new screen carefully.
Place the new screen into position, ensuring it lines up correctly with the chassis.
Connect the screen connectors securely to the logic board.
Reconnect the battery connector securely.
Carefully reattach the battery connector to the logic board.
Replace the metal plate and screws to secure the connector in place.
Gently close the screen assembly with even pressure.
Press along the edges of the screen to ensure the adhesive bonds securely.
Apply even pressure to ensure the screen sits flush with the chassis.
Description
Introducing our top-of-the-line Moto G71 5G XT2169-01
Replace your damaged LCD screen with our high-quality LCD Screen designed for Motorola
Compatible with XT2115
Product comes with a Lifetime Warranty from Parts4cells
The Motorola G71 5G XT2169-01 LCD With Touch + Frame Black Best Quality is a trademark owned by Motorola Inc., registered in the United States and other jurisdictions.
